Making custom renderers for React
10 Jul 2016
I have been working on a side-project recently. It's called Pabla (GH), and it is an engaging image creator, a just-for-fun clone of Buffer's Pablo.
The most interesting thing about it, for me, was exploring ways to do Canvas rendering. I have worked on a sophisticated React+Canvas app in the past, but it was a mess. It had functions which drew almost all of the UI to canvas directly and reacted to events on canvas. In a single huuuge file.
It hurt even navigating in that file, lest changing something or adding features.
So with Pabla, I set to find better ways to make that happen.
If you are looking for a before-after, here you go:
Before — is very imperative and handles a lot of detail.
After — with all these nested components, it looks like any React code you are used to. It also allows you to define custom canvas components, with state and such! The Cursor component neatly encapsulates the blinking.
<Canvas width={canvasWidth} height={canvasHeight}>
<CanvasImage image={image} frame={mainFrame} />
<Filter name={filter} frame={mainFrame} />
<CanvasLine color={color} width={2} from={a} to={b} />
<CanvasLine color={color} width={2} from={a} to={b} />
</Canvas>
React is great at providing common ground for building UIs, no matter the platform. It provides immense power for rendering to any output, be it native mobile, DOM, canvas, or even the terminal.
In this post, I'm going to share what I learned about the private APIs of React that let it happen. While I will share some thought-process that led me there, some mid-steps will naturally be omitted.
🚧 The APIs discussed in this post are not public, and can/will change in the future.
Skip that if you are in for the reference and not the story.
(I am aware of projects like react-canvas. However, it seemed to have a different use-case in mind. That said, I did learn on some private React APIs from it.)
Declarative first
The goal is to go from imperative to React-style declarative. But do you know what would the first step be?
It'd be to go just declarative first. That is, using data structures to describe what should be drawn onto the canvas, not immediately drawing.
It is going from
drawImage(ctx, img, [0, 0, 300, 300]);
drawRect(ctx, "black", [10, 10, 290, 290]);
to
[
{
type: 'image',
frame: [0, 0, 300, 300],
image: img
},
{
type: 'rect',
frame: [10, 10, 290, 290],
color: "black"
}
]
plus having a function that can iterate over that array and draw each primitive.
This was a vast improvement already in terms of readability and understanding what's going on.
It did lack, well, components — the layout had to include all the primitives. It's true that these could be encapsulated into functions which return parts of this layout, and composing them together, but components are a bit more than on the screen, they're also about encapsulating particular behavior (like the blinking cursor that I linked).
So what would it take to make it all React-y?
React renderers — high-level intro
It's not a secret that React can be used to render to anything, even native mobile apps, so it shouldn't come as a surprise that you can make it render onto canvas.
React is a great generalization of UI, independent of the platform.
Before going into the details, let's take a higher level look at what we need here, and really, what any rendered consists of.
-
A bridge.

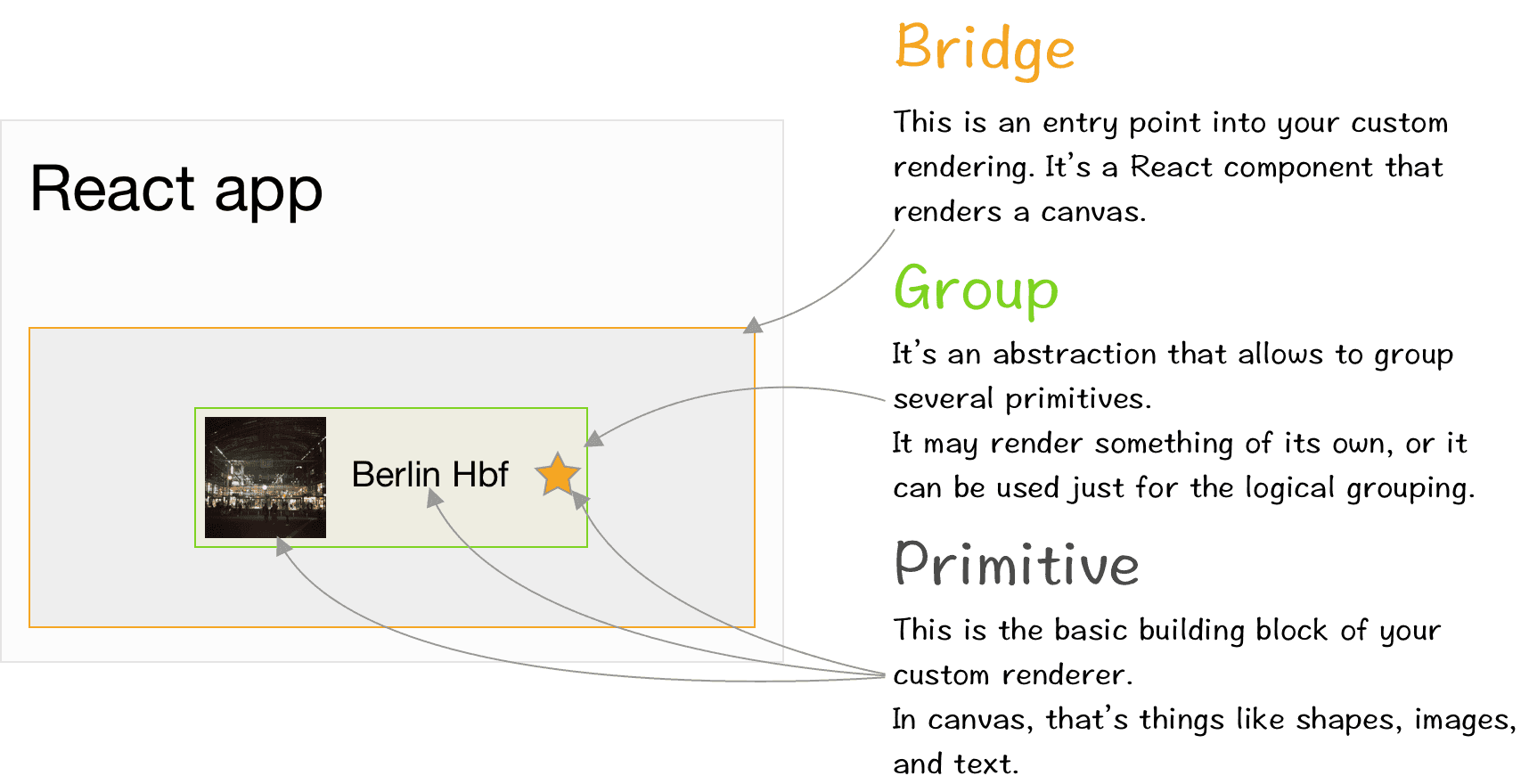

React DOM and React Native don't need it. In this case of canvas, however, we will need to provide a place for canvas components to exist. For that, a bridge component is required. It's a typical React component, which renders to DOM (with
<canvas />
in this case.) What makes it unique is that, instead of putting its children into the DOM, it does something else to them, entirely. -
A group core component.
Can you imagine what the web would look like if you couldn't group things — text and images — into blocks, and these block — into other blocks, and so on? No, nobody does that. So there are tags like
div
andp
anda
and so on — that can contain text or other elements. Your custom renderer needs that, too. To group primitive components into a single one that makes sense for your app. -
A primitive core component.
This is what you use to bridge primitives with React. In case of canvas, primitives will be like a rectangle, an image, a line of text, a line.
These are what every renderer has to have to be useful.
With that established, we can build on top of that with React components.
Yes, the ones that you already write with class X extends React.Component
or React.createClass
or functions.
They will work with no additional steps required once the baseline renderer is established.
Like where this is going? Leave your email below to know when more React goodness is out :) Also, keep on reading!
No spam, promise. I hate it as much as you do!Data structure
Now that that's clear, let's add a bit more detail and talk about how we are going to represent that.
It's evident that the structure we are dealing with here is a tree:
- Bridge
- Group 1
- Image
- Text
- Path
- Group 1
It's like DOM! And in fact, that's what React is working on — trees.
Now, the object structure that I've shown previously is immutable and can be great when it gets to the actual drawing... But when we need to insert a node here, or remove a node there, we better have a mutable tree (again, like DOM) in place.
For the tree, we are going to need several kinds of nodes:
- primitive, that represents a primitive data structure. It contains the primitive type and the props for drawing that.
- group, that represents a group of nodes.
- and bridge, that is a special kind of a group node that handles the drawing of its children.
These nodes are going to map to primitive/group/bridge components 1-to-1.
Concerning operations on nodes, what we are going to need is:
- insert a node into a group (in the beginning or after a certain node)
- remove a node
- render the whole tree
Here's how I implemented these in Pabla.
The React bridge

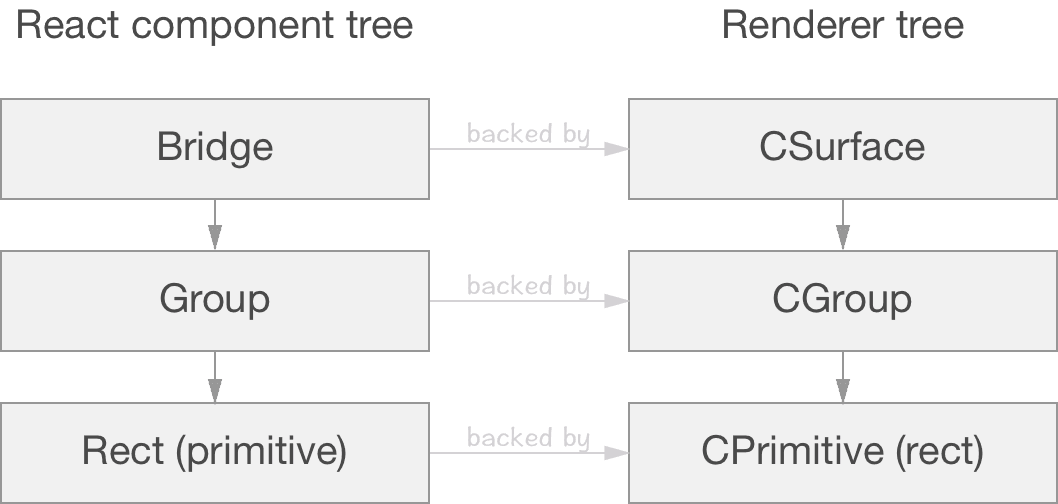

On React side, there is also a tree which resembles the tree of your renderer. It's a tree of "internal instances".
There are two kinds of these:
- composite, which are created for every
React.Component
subclass - platform-specific components aka host components (like
div
for DOM,Text
for Native, orRect
for canvas)
An internal instance is an object with the following methods:
- constructor accepting a react "element" (which is a wrapper for props)
mountComponent
— called when a component is mountedreceiveComponent
— called when a component is updatedunmountComponent
— called when a component is unmounted
Naturally, we are looking to create custom host components for the group and primitive components.
To implement custom child rendering, we are going to need ReactMultiChild
.
ReactMultiChild
is a private mixin that a container component should extend to handle its children in a custom fashion.
Bridge and group are both "containers", i.e. components that handle child rendering.
Group and primitive are both "nodes", i.e. things that are drawn.
It makes sense to extract that shared code into ContainerMixin
and NodeMixin
respectively.
Container
A few important methods that a container has to define are:
moveChild(child, afterNode, toIndex, lastIndex)
— used to reorder children inside a container OR to insert a new childremoveChild(child)
— used to remove a child node from the container
And there's also some boilerplate that needs to be there:
mountAndInjectChildren(children, transaction, context)
updateChildren(nextChildren, transaction, context)
Node
For a group and primitive components, which are going to be custom class components, we are going to store several properties:
_currentElement
— to hold a reference to a react elementnode
— to store the node data structure we've defined previously_mountImage
— to also store the node
And have these methods:
construct(element)
— to set_currentElement
getNativeNode()
andgetPublicInstance()
— to get the backing nodeapplyNodeProps(props)
— which we'll need to transfer the props to the node data structure
Bridge
The bridge will be using componentDidMount
and componentDidUpdate
to create/update the backing node, and construct children nodes.
Group
On group specifically, mountComponent
and receiveComponent
are needed to create/update the backing node, and construct children nodes.
Implementation
The post is not going to contain huge chunks of code.
You can use this file from Pabla as a reference for the full implementation.
Possible use cases
One other possible use case that hit me recently (and in a way, led to reflect on my canvas experience) is making a bridge from React Native to React, which will create a web view and render its children to it:
<ReactWebBridge>
<h2>Hey!</h2>
</ReactWebBridge>
It's quite possible in theory, but I'm not sure how's that going to work out in practice.
(Thanks to Dan Abramov and Andrzej Krzywda for reviewing my drafts.)
